DESCRIPTION

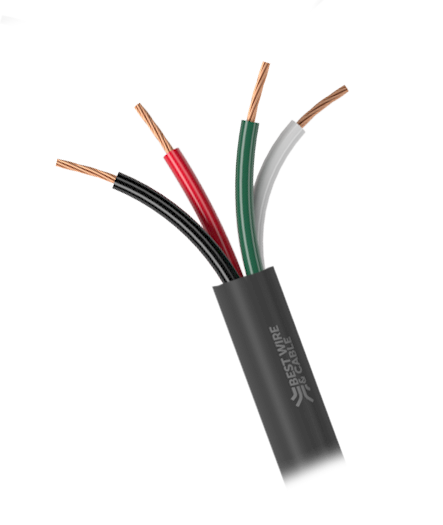

14/4 Stranded CMR/CL3R Direct Burial Sound Audio Cable
PART NUMBER
4165-105-DB
STANDARDS
For Communication and Signal Control Systems
14 AWG 4 C 105 STRAND AUDIO CABLE – DIRECT BURIAL
14/4 STRANDED CMR/CL3R DIRECT BURIAL SOUND AUDIO CABLE
JACKET COLORS
BLACK
CONDUCTOR
Oxygen Free Bare Copper Conductors
COLOR CODE
BLACK, RED, WHITE, GREEN
| NUMBER OF CONDUCTORS | 4 |
|---|---|
| AWG | 14 |
| STRANDING | STRANDED |
| CONDUCTOR DIAMETER (INCHES) | .0063 |
| INSULATION MATERIAL | PVC |
| INSULATION DIAMETER (INCHE) | .1023 |
| INSULATION NOMINAL WALL THICKNESS (INCHES) | .0102 |
| JACKET MATERIAL | FR-PVC |
| OVERALL OUTER DIAMTER (INCHES) | .3149 |
| JACKET AVERAGE THICKNESS (INCHES) | .0236 |
| PAPER TAPE | YES |
| RIP CORD | YES |
| CONDUCTOR RESSTANCE (OHMS) | 10 |
| NOMINAL WEIGHT (LBS) | 42 |
| VOLTAGE | 300 |
