DESCRIPTION

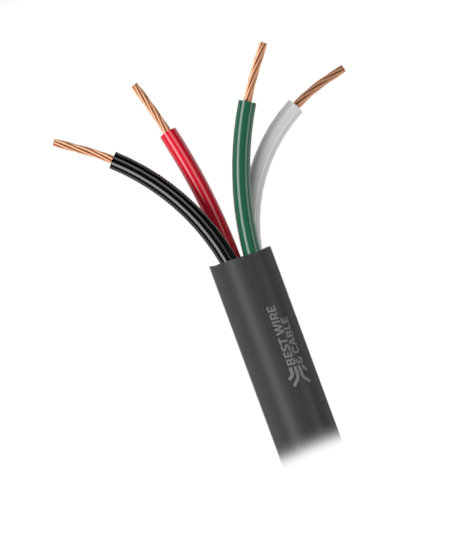

14/4 Stranded CMR/CL3R Sound Audio Cable
PART NUMBER
4165-105
STANDARDS
For Communication and Signal Control Systems
JACKET COLORS
BLACK, WHITE
CONDUCTOR
Oxygen Free Bare Copper Conductors
COLOR CODE
BLACK, RED, GREEN, WHITE
| NUMBER OF CONDUCTORS | 4 |
|---|---|
| AWG | 14 |
| STRANDING | STRANDED |
| CONDUCTOR DIAMETER (INCHES) | .0063 |
| INSULATION MATERIAL | PVC |
| INSULATION DIAMETER (INCHE) | .0063 |
| INSULATION MIN POINT THICKNESS (INCHES) | .013 |
| INSULATION ASSEMBLY DIAMETER (INCHES) | .248 |
| JACKET MATERIAL | PVC |
| OVERALL OUTER DIAMTER (INCHES) | .3149 |
| JACKET AVERAGE THICKNESS (INCHES) | .0315 |
| JACKET MIN. POINT THICKNESS (INCHES) | .0283 |
| RIP CORD | NYLON |
| CONDUCTOR RESSTANCE (OHMS) | 9.2 |
| NOMINAL WEIGHT (LBS) | 42 |
